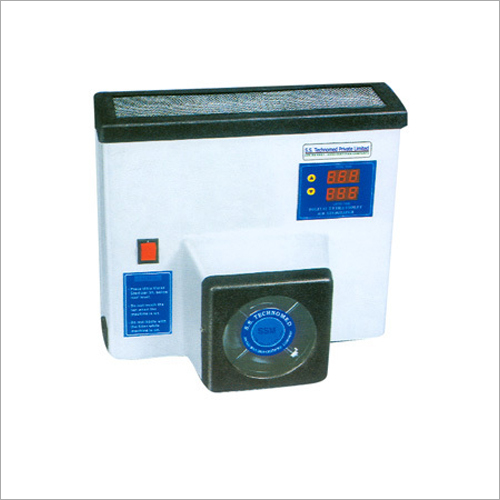

UV Sterilization System
- Minimum Order Quantity
- Unit of Measure
- Minimum Order Quantity
- Payment Terms
- Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Others
- Delivery Time
- as per requirement Days
- Sample Available
- Sample Policy
- Within a certain price range free samples are available
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
Long service life
Easy to mount
An ultraviolet ray is a bond of light with short wavelengths from 2000 to 2950 angstrom units which possess the greatest germicidal effects of all ultraviolet wavelengths, particularly the wavelengths of 2537 angstrom units.
Ultraviolet Sterilizer can be kept an even during the operation as special measures are taken to save against direct radiation, this unit can be mounted an wall, kept on the table or ketp at a suitable place.
How Does it Works:
The TUV Lamps have germicidal effect for killing and inactivating bacteria viruses and other primitive organisms. In order to sterilize and purify the air sterilization chamber is provided which has an arrangement to draw the impure air from the top, filter it with dust filter then with 15 micron fine filter., then air passes through carbon filter (Optional) and finally sterilize it with Ultraviolet Radiation and then release the pure clean air it into the room. Special measures are taken to protect against direct radiation.
What is U.V. Sterilization:
U.V. Ray penetrates direct into bacteria and raises various kind of biochemical reaction itself then bacteria die out or fall into a functional disorder especially. UV rays strike directly bacteria's DNA and have a fatal influence on it. These UV rays work directly on most bacteria's DNA sequences and raise disorder itself then inactivate bacteria's cell perfectly.
Five Steps of Sterilization:
Step-I Dust Filter: Large particles of dust such as strands and hairy-ducts are filtered at this stage.
Step-II 15 Micron Filter: Minute particles floating in air filtered from this filter.
Step-III Carbon Filter (Optional): Thanks to the functions of strong deodorization and decomposition, carbon filter removes tobacco smokes a smell of food and most of odours.
Step-IV U.V. Filter: Equipped with two 8 watt U.V. Lamps it effectively sterilizes the air.
Step-V Ionizer (Optional): This Negative Ion Generator generates large quantities of negative Ions thus it feels fresh and comfortable.
Ultra Violet Sterilizer can be effectively installed at different place:
At medical sites like Operation theatre, ICCU, ICU, NICU. Post Operative words. Trouma Wards, Mortuary etc. Suitable for small laboratories where bacteria-free air is desired.
At homes in a closed room specially for allergic patients sufferent from Respiratory diseases like Asthma. Can also be used for the patient suffering from AIDS.
TB to protect them from infections. Ideally suited in Dental clinic. Physicians clinic to guard against cross infections from patients.
Digital Timer-Dual Digital Timer for display of total time and laps time of the sterilizer which can also be adjusted according to the particular need. Remote Control.
|Dimension ||H 13.0 IN x W 14.5 IN x D 9.5 in |
|Gross Weight ||4.00 Kg (Approx.) |
|Voltage Required ||230 V AC 50 Hz |
|Power Consumption ||50W |
|Fuse ||350 MA |
