Home » Products » Infant Radiant Warmers » Baby Radiant Warmer

Baby Radiant Warmer

Baby Radiant Warmer
Baby Radiant Warmer
Product Code : TIANA S
Brand Name : SS TECHNOMED
Price And Quantity
  • Minimum Order Quantity
  • 1 pices
  • Unit of Measure
  • Piece/Pieces
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Others
  • Delivery Time
  • as per requirement Days
  • Sample Available
  • Yes
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

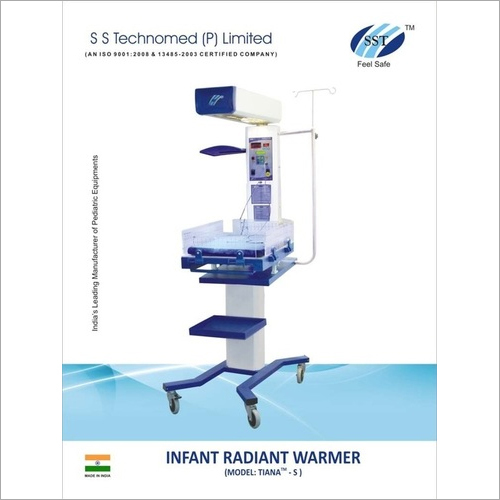

INFANT RADIANT WARMER (MODEL: TIANA - S )

The digital, micro processor - based controller comes with a full spectrum of features. Two function control modes provide the clinician more flexibility while optimizing the thermal environment. Dual digital temperature displays allow easy visualization of patient temperature and set point.

Control Panel

The TianaTM - S Infant Radiant Warmer  comes complete with automatic manual /baby (Servo)/Air modes. In addition, the Skin/Air temperature display is larger than other set temperature display. Skin temperature display can be converted form OC  to OF by the push of a button. A big LCD is provided for more information and visualizations of the heater power in manual and servo modes. A full complement of alarms provides safety and convenience, with both audible and visual indicators in the event of :

• High Temp./ Low Temp.  •  System Fail  • Probe Failure  •  Power Failure  • Timer  •  Heater fail / ON (Optional) only  visual alarm provided

Heater Assembly

The Parabolic heater assembly located above the centre of the support structure consists of an integral examination light and a 650 watts heating system (Silica or quartz /Ceramic Heater) for quick warming and even distribution of heat on the baby bed. The heater can be swiveled in either direction for taking X-ray and doing procedures.

Air Mode (Optional)

The system comes with air sensor. This is added security cover with exclusive feature of switching OFF the heater in case the AIR temperature goes above 390C irrespective of what the skin temperature is at the time of event.

Manual Mode



The system automatically starts heating from 40% in manual mode and the same can be changed through settings up to 100%. The system automatically converts from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.

Baby Bed

The spacious baby bed incorporates easy drop down/ fold down glasses for maximum access to the patient.

Optional: X-Ray facility is provided below the baby bed for taking X-ray of the baby without disturbing.

Additional Features

If needed the unit can be programmed by the user itself for any of the following features:

(a)          Count Up / down Timer.

(b)          Check baby Alarm.

(c)           Pre warming mode.

Castors

The system is fitted with 4" high quality castors having brakes in front 2 castors. Antistatic castors can be fitted as on option for further safety in lieu of the standard castors.

Optional : The system comes with check baby alarm ( 1 - 120min.)

Dimensions(Approx.)

Technical Specification                     Electrical Specification

Height- 1850mm                                Power supply - 200V / 50Htz

Length- 1050mm                               Heater Power - 650 Watts

Width-  650mm                                 Fuse - 5 Amp.
